What's the air slide structure?

2015-11-20

Air slide is a pneumatic conveying equipment which widely used for conveying dry and powder material,especially for cement.It is characterized by wasy maintance,good sealing,no noise,safe and dependate operation because of no driving part.
We are producing air slide in factory recently.See some pitures to help us know more.

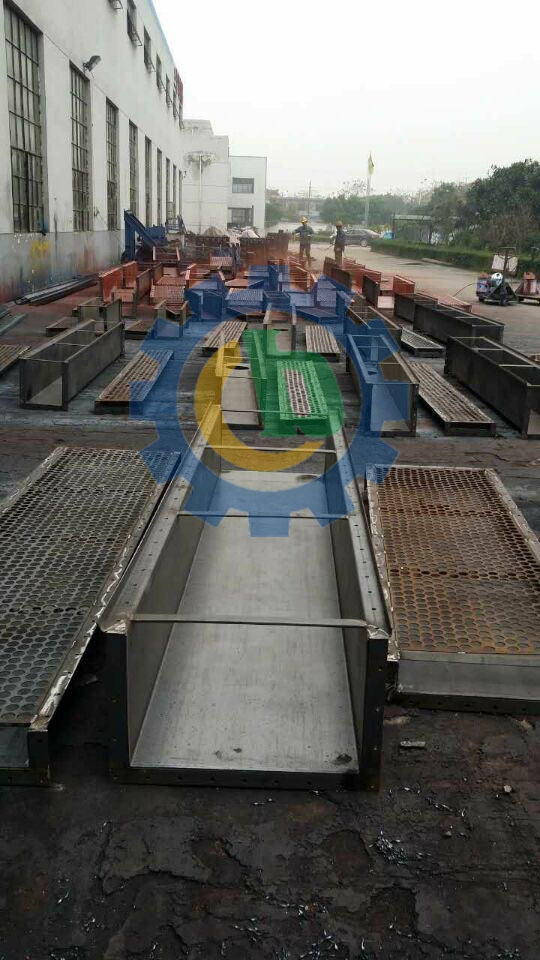

air slide drawingmain part of air slide and ventilation layer

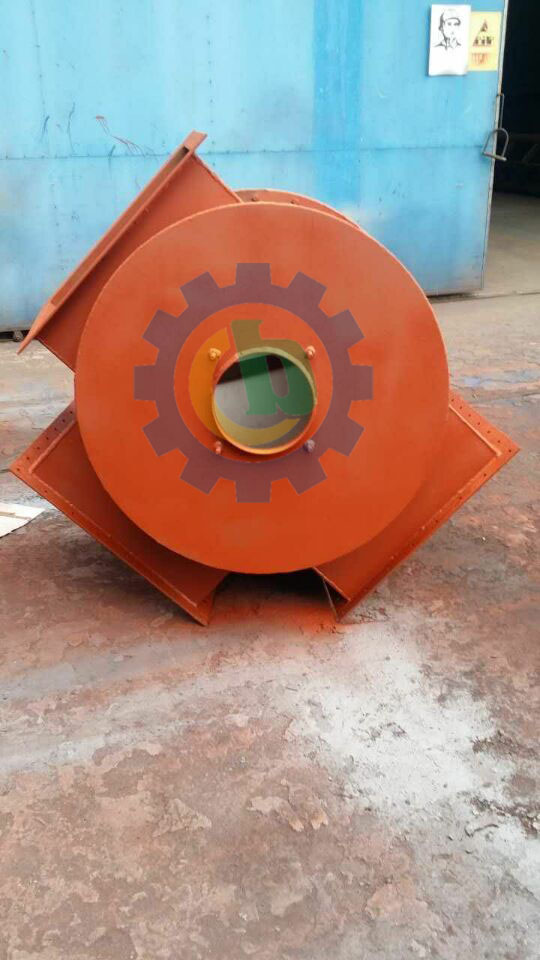

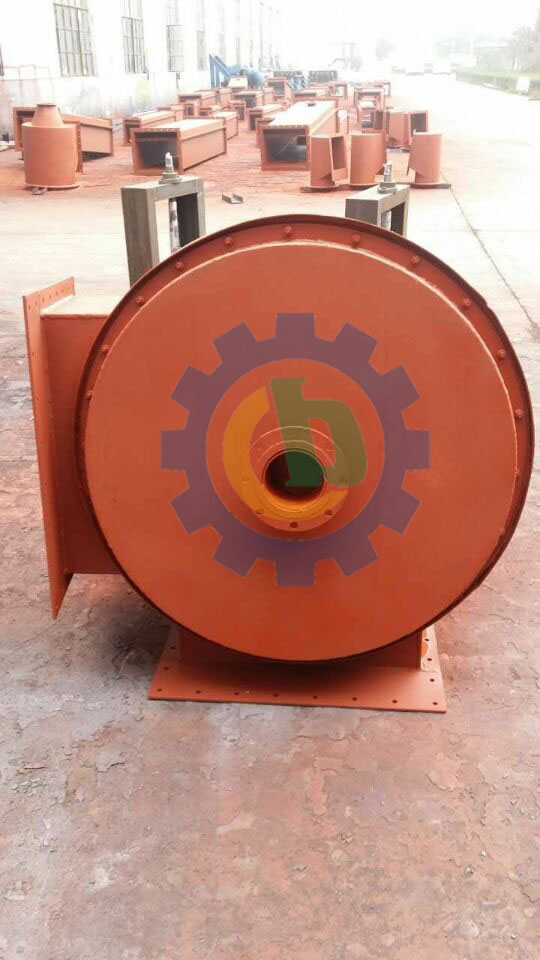

three-way chute  bending chute/two-way chute
